Schaller LockMeister Tremolo - beyond your expectations
74,3 m.m. fra centrum til centrum af bro skruer.
As the sole manufacturer of the world‘s most renowned double locking tremolo we felt it was time to push the envelope.
Proudly introducing the new Schaller LockMeister™ Tremolo!
Along with Schaller‘s famed precision the new LockMeister™ Tremolo offers a second to none C45-steel ground plate, forged and hardened in Germany, resulting in improved sound and sustain as well as superior tremolo performance and intonation.
New technologies enabled us to craft all components in unprecedented tolerances giving the Schaller LockMeister™ Tremolo a sublime level of workmanship and longterm quality.
But our attention to detail did not stop here. Performing meticulous assessments made us identify the perfect choice of pivot screws and tremolo springs.
Through more rigorous testing we learned how all burnished surfaces were prone to corrosion. That‘s why all studs, inserts and screws of our new Schaller LockMeister™ Tremolo now feature black-zinc and black-chrome finishes for improved look, touch and durability.
All this resulting in our world famous Schaller longevity.
Experience the new Schaller LockMeister™.
Special studs with additional inserts are used to mount the tremolo onto the instrument. The inserts have a fine thread. We also supply studs with threads which enable the studs to be specify screwed into the wood body of the instrument directly, i.e. without inserts.

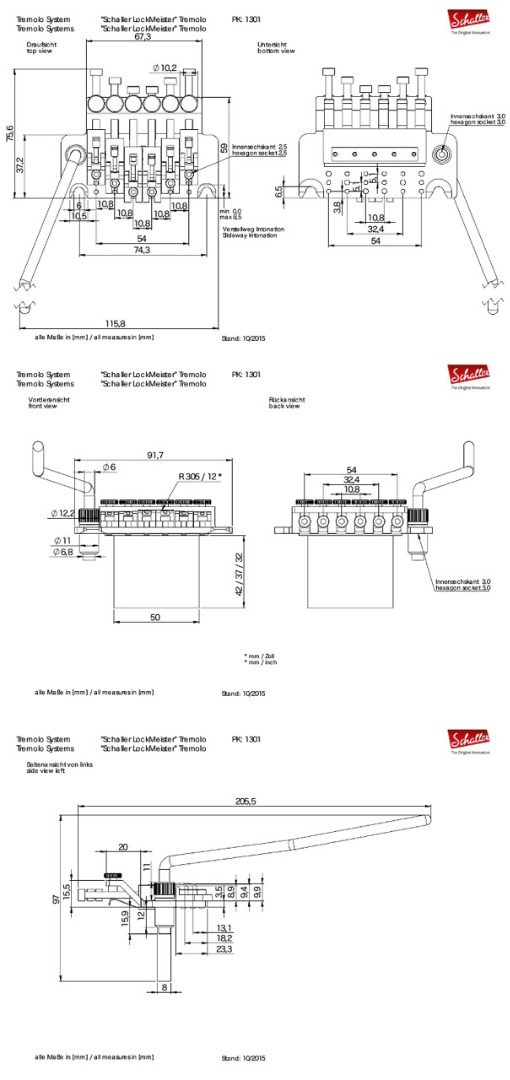

The dimensions of our Tremolo LockMeister™ are exactly the same as the dimensions of both the Floyd Rose Tremolo and our Schaller Tremolo. You can easily replace your Floyd Rose Tremolo or your Schaller Tremolo with our new LockMeister™ Tremolo. This also applies to all replacement parts!
The back of the string lock inserts is numbered with 0,1 and 2.
0 is for the D and G strings, 1 is for the A and B strings and the number 2 is for both E strings.
technical specification
distance height adjustment screws 74,3mm, size press-in bushing 10mm, string spacing E-e 53,5mm, slideway intonation 8,5mm, weight 442g with block length 37mm
scope of supply
1 locking nut complete with 2 pairs of mounting screws, 1 string retainer with mounting screws 2.2 x 16 mm, 1 tremolo claw complete with mounting screws 4.2 x 45 mm and 3 tremolo springs, 2 mounting studs with 2 threaded bushings, 3 Allen keys (2.0/2.5/3.0 mm)
